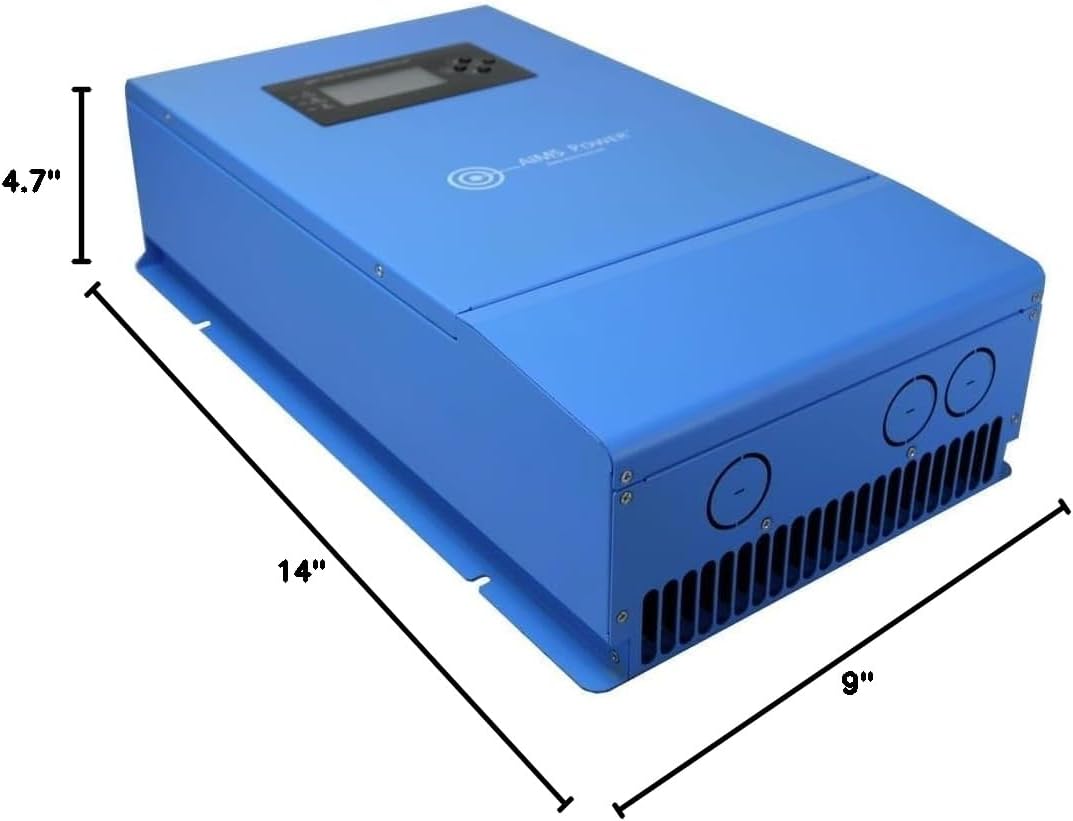

AIMS Power SCC80AMPPT 80 Amp MPPT Solar Charge Controller; Charges 12, 24, 36 and 48 Volt Solar Systems; 4 Stage Charging; Battery Type Selector; Stackable; Over Temp Protection

AIMS Power SCC80AMPPT 80 Amp MPPT Solar Charge Controller; Charges 12, 24, 36 and 48 Volt Solar Systems; 4 Stage Charging; Battery Type Selector; Stackable; Over Temp Protection Key FeaturesMPPT technology; Maximum Power Point Tracking produces maximum available power from PV array to battery bank utilizing peak power of the I-V curveQuality heatsink cooling, no fans needed and no thermal deratingBattery type selector and user defined charging voltage4 stage charging, PV input, battery output and load control portsStackable, Reliable electronics, over engineered components generating less heatVery efficient up to 99%, Low self consumptionThermal design rugged case, Over temp protection, Overload, short circuit, high and low voltage protectionRS485 port for computer monitoringMarine coatedMounting holes SpecificationsPV Operating Voltage: 15 to 150Vdc at 12V; 34 to 150Vdc at 24V; 50 to 150Vdc at 36V; 60 to 150Vdc at 48VRated PV input: 12V – 1200 Watts; 24V – 2400 watts; 36V – 3600 watts; 48V – 4800 wattsMaximum charging current: 80 ampsMaximum DC load current: 60 ampsMax PV open circuit voltage: 150VdcSelf power consumption: less than 4 wattsBattery types: gel, sealed, AGM, flooded, lithium, user defined (adjustable voltage)4 Stage charging: bulk, absorption, float and equalize Bulk charge voltage: sealed 14.4V, AGM/gel 14.2V, flooded 14.6V, user defined 10-15VLow voltage disconnect voltage: 10.5V (10.5-12.5V adjustable)Enclosure: IP43 protection, metalTemperature range: -25 C to 60 C or -13 F to 140 FWire knockouts: 1.25"Unit weight: 19 lbsDimensions: 14"L x 9"W x 4.7"HCertifications: ETL to UL1741, CE, RoHS

• POWERFUL: The AIMS MPPT charge controller uses an efficient algorithm to fully adjust with weather conditions to ensure that maximum power is harvested from the solar panel array throughout the day.
• STACKABLE: Stack up to 10 of the same AMP rated AIMS MPPT solar charge controller together to maximize your solar array.
• CHARGING: 4 stage charging at 12, 24, 36, or 48 Volt DC for 8 different types of batteries including lithium and a user defined option with adjustable voltage.
• SAFE: Thermal design rugged case, Marine coated, Protections include: overload, short circuit, high voltage, high temperature, low voltage and auto correct
• CERTIFIED: CE, ETL to UL1741 and RoHS compliant
